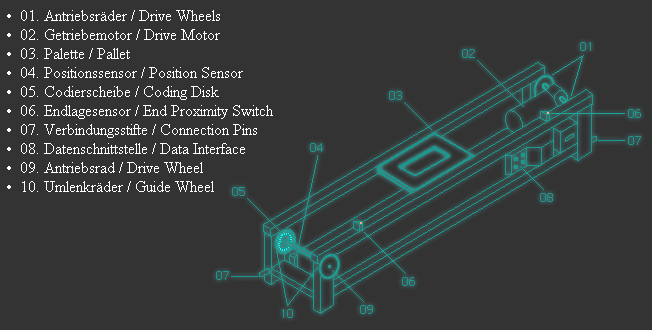

3.1 Short Description HPS Conveyor Belt and Motor



General Information

The HPS conveyor belt is a mechatronic system. It was developed by the company TOPIK DIDAKTIK as a basic module for a comprehensive transfer system designed based on an industrial model. It can be expanded into a transfer system in combination with curves and switches from production. In addition to transport tasks, it is also used for mounting assembly and handling automation units that are placed on the conveyor belt, as well as for building a storage system.



Technical Data

Belt length: Standard 800 mm, other lengths possible
Belt height: 140 mm
Track width: 120 mm
Belt speed: approx. 10 m/min
Creep speed: approx. 6 m/min
Load: Pallet + 500 g
Operating voltage: 24 V DC
Motor: M 42 x 15 / I + SN 17 ANTRIEBSTECHNIK GEFEG, 24 V DC;
0.8 A, worm gear unit, output speed 68 rpm,



Power supply at the HPSF and matching connector, pin assignment as follows:

1. black (L1, U)
2. brown (L2, V)
3. blue (L3, W)
yellow/green (PE)



Drive unit for conveyor belt with gear motor 3 x 130 V AC

Technical Data

Induction housing motor
Induction housing motor
Voltage: 3 x 230 V AC
Speed: 2700 rpm
Direction of rotation: right/left
Power: 18 watts
Frequency: 50 Hz
Protection class: IP 54
Gear ratio: 40:1
