3.3 Hardware
Local:

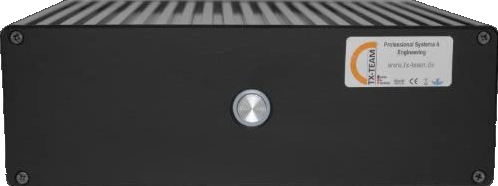

Design: Industrial Nettop TX-Team (100% passively cooled)
Operating System: Ubuntu 16.04.7 LTS Xenial Xerus
System Manufacturer: Gigabyte Technology Co., Ltd.
System Model / Type: H97N-WIFI / x64
Processor: Intel(R) Core(TM) i5-4670T CPU @ 2.30GHz, 2301 MHz, 4 Core(s), 4 Logical Processor(s)
Installed RAM: 8.00 GB
Usable RAM: 7.87 GB
System load: 60%
Hard Drive Model: Samsung SSD 840 EVO 120G SCSI Disk Device
HDD Backup Model: WD Ext HDD 1021 USB Device / 2.73 TB SATA 7200 RPM External
Download user manual
Local:
Router & Gateway 1:

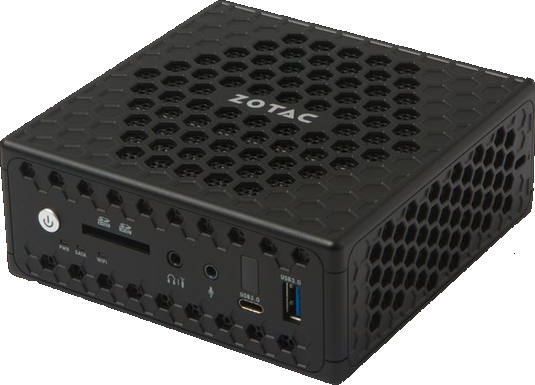

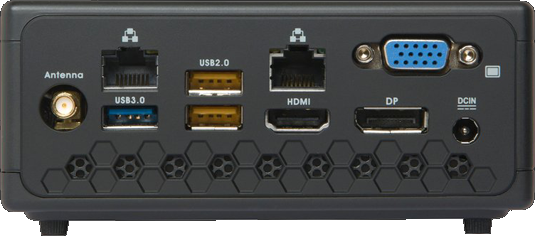

Design: Barebone Nettop ZBOX CI323 nano (100% passively cooled)
Operating System: pfSense 2.2.4-RELEASE 64
System Manufacturer: ZOTAC, American Megatrends Inc. B301P016, 14/03/2016
System Model / Type: SoC / x64
Processor: Intel(R) Celeron(R) CPU N3150 @ 1.60GHz, 4 Core(s), 4 Logical Processor(s)
Installed RAM: 8.00 GB, DDR3L-1600MHz (PC3L-12800)
Usable RAM: 7.90 GB
System load: 20%
Hard Drive Model: Transcend 64GB SATA III 6Gb/s SSD340K 2.5 SSD TS64GSSD340K
WLAN Standards: WiFi 5 (IEEE 802.11ac up to 1 GBit/s)
Download user manual
Local:
Router & Gateway 2:

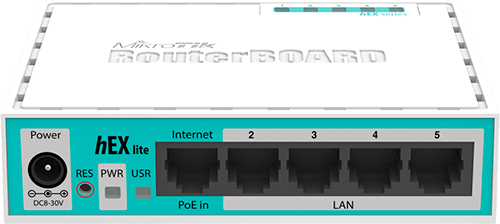

Design: MikroTik hEX lite
Operating System: RouterOS L4
System Model / Type: RB750r2 MPLS Router
Processor: 850MHz CPU
RAM: 64MB
Interfaces: 5 x RJ45 Ethernet
Download user manual
Local:
Router & Gateway 3:

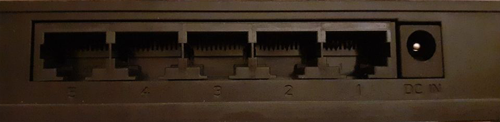

Design: ISY Network Switch
System Model / Type: INW 1000 / Fast Ethernet 100-Mbit/s
Interfaces: 5 x RJ45 Ethernet
Short description
Local:
Laptop:

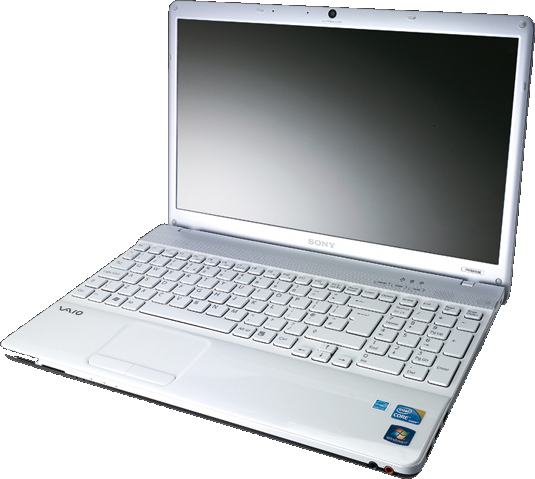

Design: Sony VAIO PCG-71211M / VPC-EB2G4E
Operating System: Microsoft Windows 7 Ultimate
System Manufacturer: Sony Corporation
System Model / Type: PCG71211M / VPCEB2G4E / x64-based PC
Processor: Intel(R) Core(TM) i3 CPU M 350 @ 2.27GHz, 2 Core(s), 4 Logical Processor(s)
Installed RAM: 4.00 GB, DDR3-1066MHz / PC3-8500 DDR3 SDRAM SO-DIMM
Usable RAM: 3.86 GB
System load: 10%
Hard Drive Model: Toshiba MK5055GSX 500GB 2.5" SATA-300
WLAN Standards: Qualcomm Atheros AR9285 Wireless Network Adapter
Download user manual
Remote:
Server System:
Design: RS 1000 SAS G8 a1 12M Root Server
Operating System: Ubuntu 16.04.7 LTS Xenial Xerus
System Manufacturer: netcup GmbH
System Model / Type: SoC / x64
Processor: Intel® Xeon® Gold 6140 / 6230
Installed RAM: 8.00 GB DDR4 ECC
Usable RAM: 7.90 GB
System load: 90%
